For: Dealers, installers and operators fitting out a training room above grade: a second-floor suite, a mezzanine or an upper-level amenity room.
The decision: Whether the planned equipment layout can go on that floor, and what to hand the structural engineer so the answer arrives in writing before delivery is booked.
60-second answer: The live load on structural drawings is a uniformly distributed design value, not an equipment rating. Codes set different minimums by use: New York City’s current table, for example, lists gymnasiums at 100 pounds per square foot and offices at 50, so a suite designed as office space may have been designed to half the gymnasium figure. Rack feet, loaded plate storage, dropped weights and pallets staged on delivery day are concentrated and impact loads that only a structural engineer can evaluate. Pull the drawings, give the engineer weights, contact dimensions and a plain description of dropping, and get a letter tied to a layout revision.
The number on the drawings is a design load, not an equipment rating
Building codes assign a minimum uniformly distributed live load to each use of a floor. In New York City, Table 1607.1 of the 2022 New York City Building Code, a city code that follows the IBC structure, lists gymnasiums at 100 pounds per square foot (psf) and does not permit live load reduction for them. In the same table, offices in office buildings are 50 psf with a 2,000-pound concentrated load, corridors above the first floor of office buildings are 80 psf, upper-floor retail is 75 psf and light storage warehouses are 125 psf. These are New York City requirements. Elsewhere, the governing values are those of the building code the state or city has adopted: the International Building Code (IBC) published by the International Code Council is a model code that applies only where a jurisdiction adopts it, often with amendments and not always in its latest edition, so the engineer of record confirms the governing values for the building; for a specific room, the figure that matters is the one the building was actually designed to.
That figure should be on the drawings. IBC-based codes require construction documents to indicate “the uniformly distributed, concentrated and impact floor live load used in the design” for floor areas (Section 1603.1.1 in both the New York City code and the 2012 edition of the model IBC). Three details change how to read it:
- Concentrated loads in the code are design checks, not ratings. Where the New York City table lists a concentrated load, that code (Section 1607.4) assumes it is spread over an area 2½ feet by 2½ feet. The city’s gymnasium row lists no concentrated load at all. Neither figure tells you what a rack foot may press on the slab.

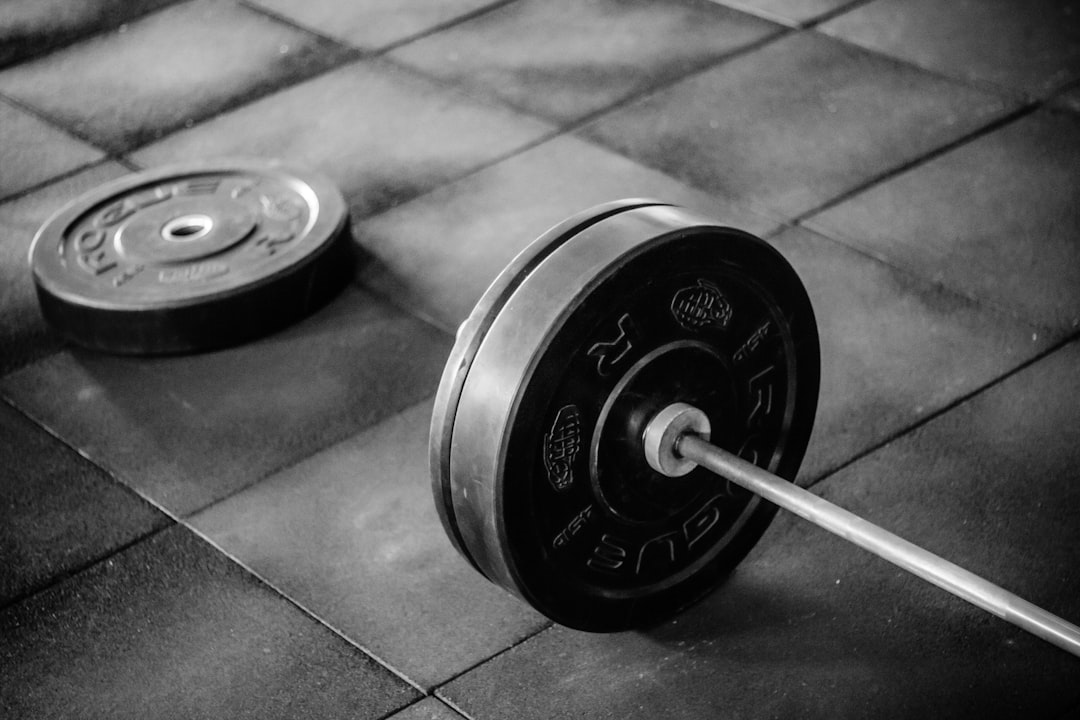

- Impact is covered only up to a point. The tabulated live loads “shall be assumed to include adequate allowance for impact conditions,” but “provisions shall be made in the structural design for uses and loads that involve unusual vibration and impact forces” (New York City code, Section 1607.10, quoted here; in the model IBC the impact-load section is 1607.11 in the 2021 edition and 1607.12 in the 2024 edition). Whether dropped barbells or jumping classes are unusual for a given floor is the engineer’s call.
- Equipment does not apply an average load. A station delivers its own weight, plus its user and plate load, through a few feet. The contact pressure under one foot is that foot’s share of the load divided by its contact area. Work it out from manufacturer figures if it helps the conversation, but do not set it beside the psf value on the drawings and draw a conclusion; that comparison belongs to the engineer.
A change of use is where the problem starts
A floor keeps the design load it was built with. A suite designed as office space and later leased to a studio does not gain capacity because the lease permits fitness use. Existing-building codes treat that change as a structural question. In the 2021 International Existing Building Code, ICC’s model code for existing buildings, Section 1006.1 requires structural elements carrying live load from an area with a change of occupancy to meet the IBC live-load requirements for the new use, with an exception for elements whose demand-capacity ratio rises by no more than 5 percent. Jurisdictions amend this: Minnesota rewrote the exception, and Seattle replaced the section with its own reference. Ask the building department how it handles a change from office or retail space to fitness use before the layout is drawn.
Two more places to look. Some jurisdictions require owners to post design live loads above 50 psf on commercial and industrial floors; Ohio’s building code, for example, requires the posting and makes removing or defacing the notice unlawful. A posted sign is useful evidence, and the absence of one proves nothing. Then read the lease for permitted use, any floor-load clause, and who pays for structural review, reinforcement and damage. Ask for the structural drawings in writing before signing, and treat a refusal as information.
What the structural engineer needs from you
An engineer can only evaluate what is put in front of them. Assemble one pack per room:
- Structural records: framing drawings, general notes with design live loads, floor system type, and any earlier engineering letters or alteration permits.
- The layout: every heavy station placed on the plan, with platforms and plate storage shown, drawn so the engineer can overlay the column grid.
- Equipment data from the manufacturer: assembled weight, maximum user weight and any total-load rating, plate-storage capacity, number of feet, foot plate dimensions and anchoring requirements. Get the ratings in writing as described in user and total-load ratings, and settle fixings as in rack anchoring scope.
- A dynamic-use statement: whether weights will be dropped, from what height, onto what platform or flooring, how often, and whether classes include synchronized jumping. Describe it plainly; it is the detail most easily left out.

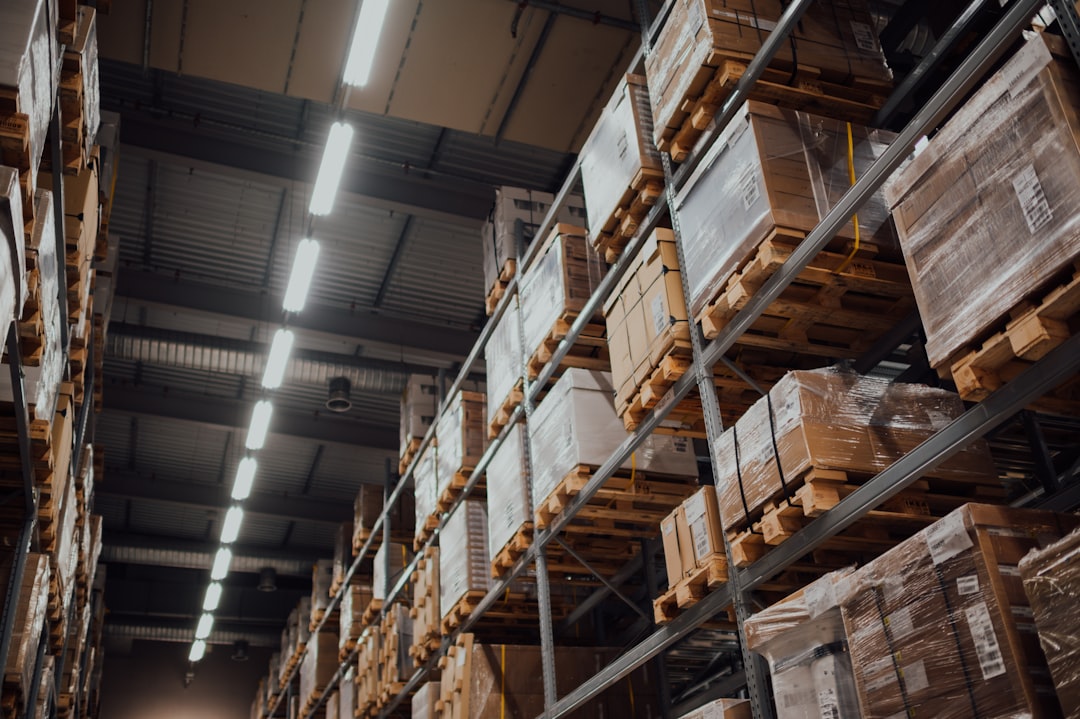

- Delivery data: crate and pallet weights, how many arrive at once, and the route through the building from the delivery site survey.
Ask for a written opinion that names the layout revision it covers, any restrictions (station positions, drop zones, plate limits) and where pallets may be staged. Flooring is not structure: specify the rubber or platform system in the pack and let the engineer say what it does and does not change.
Reading what you find
| What you find | What it suggests | Next step |
|---|---|---|
| Drawings state a design live load at or above the gymnasium value in your adopted code | Distributed load is less likely to be the constraint | Engineer still reviews concentrated loads, plate storage and drops |
| Drawings show an office or other lower design load | Heavy stations may need relocation, restriction or reinforcement | Engineer evaluates; building department confirms the change-of-use path |
| No drawings available | Nobody can evaluate the floor from the plan | Hold the layout; ask the engineer to scope an investigation |
| Free-weight area with dropping planned | Impact may go beyond what ordinary live loads allow for | Dynamic-use statement and platform specification go to the engineer |
| Heavy stations and plate storage clustered in one bay | Concentrated load in one area of the floor | Engineer sets positions against the column grid |
| Landlord offers verbal assurance only | No record that survives a change of tenant, manager or a claim | Written engineer opinion tied to a layout revision |
| Written opinion on file for the current layout | Documented basis to proceed | Keep it with the floor plan; re-check when the layout changes |
Delivery day and the years after
Federal workplace rules set a baseline for the employer: under 29 CFR 1910.22(b), “the employer must ensure that each walking-working surface can support the maximum intended load for that surface.” Delivery day can concentrate more weight in one place than the finished layout, because crates arrive together. Ask the engineer where staging is acceptable, mark it on the plan and brief the installer before the truck arrives; the installation readiness plan is the place to schedule it.
After opening, layouts drift: stations move, plate trees multiply, a drop zone migrates toward a wall. Set your own review triggers and send each one back to the engineer: a new heavy station, a relocated platform, added plate storage, a new class format with jumping or drops, or vibration complaints from the floor below. Keep the engineer’s letter and the marked plan with the maintenance records, as described in building the evidence file.
For dealers, the procedural fix is one line on any above-grade quote stating that structural verification is the buyer’s responsibility and listing the weights and contact dimensions supplied. It raises the question while it can still change the layout. Have counsel approve the wording.
What to do this week
- Request the structural drawings and general notes for the room, and record the stated design live load and use.
- Ask the building department how a change from the current use to fitness use is handled.
- Build the equipment sheet from manufacturer documents: weights, ratings, plate capacity, feet, contact dimensions and anchoring.
- Write the dynamic-use statement and send the full pack to a licensed structural engineer for a written opinion tied to the layout revision.
- Add a structural-verification line to every above-grade quote.
Continue with FEX
- Rack anchoring: set the scope before the quote
- Heavy-bag rails: resolve structure before ordering
- Delivery site survey: routes, doors and lifts
FEX editorial guidance: the evidence table, engineer pack and review triggers are FEX analysis. Code values shown are examples from the codes cited; the edition and amendments your jurisdiction has adopted govern. This is not engineering or legal advice: the structural engineer of record, or a licensed structural engineer engaged for the project, decides whether a floor can carry a layout, and the building department decides the code path.
Source notes
- NYC Department of Buildings: 2022 NYC Building Code, Chapter 16 Structural Design (as amended by Local Law 77 of 2023) — Table 1607.1 values (gymnasiums, offices, corridors, retail, light storage), Sections 1603.1.1, 1607.4 and 1607.10.
- International Code Council: 2012 IBC Commentary, Chapter 16 (sample) — IBC Section 1603.1.1 requirement to indicate floor live loads on construction documents.
- International Code Council: 2024 IBC Significant Changes – Structural (2024) — Renumbering of the impact-load section from 1607.11 in the 2021 IBC to 1607.12 in the 2024 IBC.
- Seattle SDCI: 2021 Seattle Existing Building Code, Chapter 10 Change of Occupancy — 2021 IEBC Section 1006.1 live-load language and its 5 percent exception, and Seattle’s replacement section.
- Minnesota Rules 1311.1006: Section 1006, Structural (2020) — Minnesota’s amendment of the exception to IEBC Section 1006.1.
- Ohio Administrative Code 4101:1-16-01, Structural design (effective March 1, 2024) — Owner posting of design live loads above 50 psf.
- eCFR: 29 CFR 1910.22, General requirements — Employer duty that walking-working surfaces support the maximum intended load.
Editorial update, October 8, 2026: Verified live-load values against the current New York City Building Code table, replacing figures from a superseded city reference standard that listed light storage lower, and added the code’s concentrated-load, impact and change-of-occupancy provisions. Removed unsupported claims about engineering cost, turnaround and typical point-load ratios, and reframed the piece around the evidence the structural engineer needs. October 9, 2026: labeled the live-load values and section numbers as New York City requirements and described the IBC and IEBC as model codes that apply only where a state or city adopts them.
