A member reported that the bar would not rack cleanly at the top, and the fault behind that complaint is the one commercial smith machines almost always hide until somebody is holding weight.
- The Call: A Bar That Would Not Rack
- Six Weeks Earlier: The Service Log Said Nothing
- Six Months Earlier: The Install That Set the Alignment
- One Year Earlier: The Spec Sheet Nobody Read Closely
- Two Years Earlier: The Quote and the Counterweight
- Wear Points on Commercial Smith Machines
- The Safety Case Behind a Locking Mechanism
- The Standard That Covers Cardio and Skips the Rack
- Specifying Commercial Smith Machines That Age Well
- Questions Buyers Ask Before Ordering a Smith Station
- Are commercial smith machines still worth floor space
- How often should the counterweight cable be replaced
- Does an angled bar path need different maintenance
- Can a station be re-anchored on a different floor
- What the Bar Was Telling Everyone
The technician found a guide rod out of plumb by a small amount, a bushing worn oval on one side and a hook row that had been catching intermittently for weeks. The bar itself was fine. The frame was fine. Everything that decided the outcome was a component costing less than a set of dumbbells.
The Call: A Bar That Would Not Rack
On commercial smith machines the complaint arrives as a usability issue and gets logged as one. A bar that needs a second attempt to hook is annoying rather than alarming, so it sits in the queue behind a treadmill that will not start.
That queue position is the first mistake. A station where the bar does not seat predictably is a loaded-weight failure waiting for a heavier member, and it should be pulled from service rather than scheduled.
Six Weeks Earlier: The Service Log Said Nothing
Nothing had been recorded, because nothing measurable had happened. This is the structural weakness in how commercial smith machines are maintained: they have no motor, no console and no hour meter, so they generate no data.
A treadmill announces itself. A rack does not. The signals are tactile and get noticed by members long before they reach a log, which is the same blind spot described in the failures equipment announces weeks early.
Six Months Earlier: The Install That Set the Alignment
Guide rod alignment on commercial smith machines is established at installation and almost never revisited. A station shimmed on an uneven slab, or anchored before the floor finish cured, carries a small misalignment from day one.
That misalignment does not fail anything immediately. It loads one side of each bushing slightly harder than the other, and eighteen months of that produces the oval wear the technician eventually finds.
One Year Earlier: The Spec Sheet Nobody Read Closely
Two commercial smith machines that look identical on a floor plan can use entirely different motion hardware. Bronze bushings, sealed linear bearings and roller carriages all appear as smooth travel in a showroom and behave very differently at year four.
Commercial smith machines also vary in how the bar path is constrained. Fixed vertical, fixed angled and counterbalanced designs produce different loading on the same components, and the maintenance profile follows the design rather than the brand.
Two Years Earlier: The Quote and the Counterweight
The counterweight is the specification buyers of commercial smith machines never confirm. A counterbalanced bar has an effective starting load well below the weight of a free barbell, and that figure varies by manufacturer without ever appearing on a floor plan.

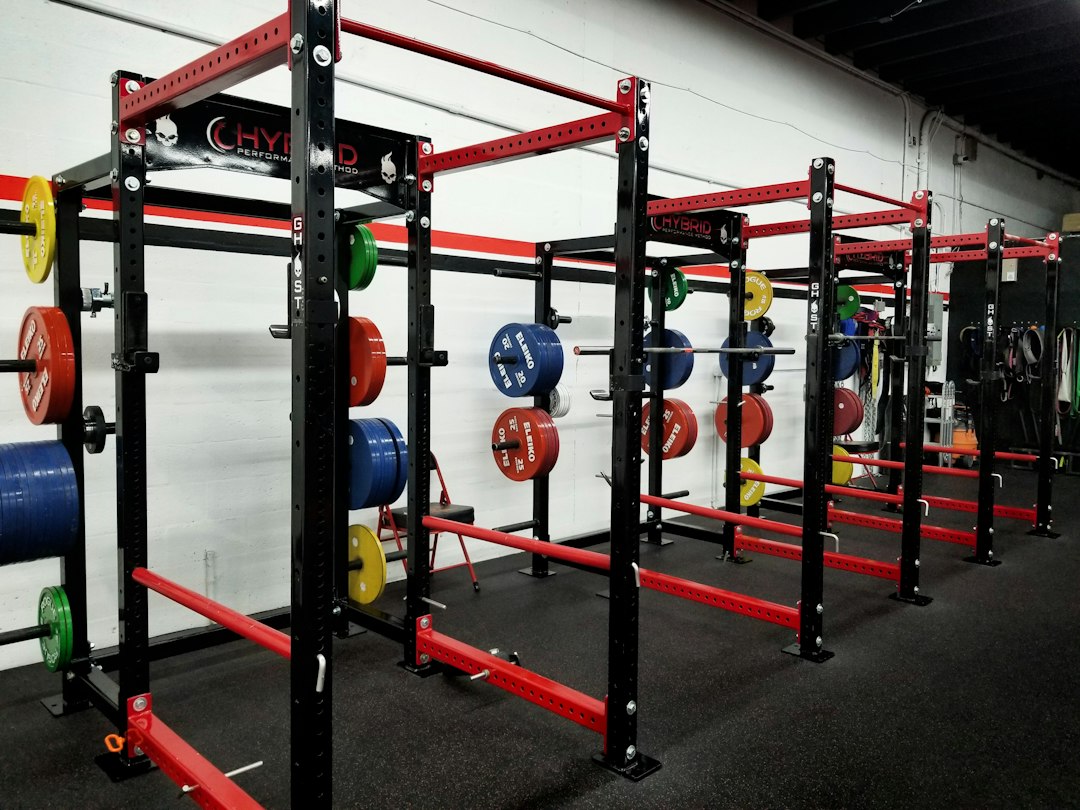

Members and trainers then compare loads between a smith station and a rack as though the numbers mean the same thing. They do not, and the confusion is one reason the two categories are programmed so differently, as the queue patterns between racks and machines show.
Ask for the effective bar load in writing at quote stage. It belongs on the same page as the plate specification, because the station will be loaded with the same plates judged under the insert and tolerance checks that grade bumper plates.
Wear Points on Commercial Smith Machines
Every fault on commercial smith machines traces back to one of eight components. None of them are expensive and all of them are inspectable without tools beyond a level and a torque wrench.
| Component | What members notice | What a technician finds | Suggested check | Action threshold |
|---|---|---|---|---|
| Bushings or linear bearings | Travel feels notchy or loud | Oval wear on the loaded side | Quarterly | Any play felt by hand at the bar |
| Guide rods | Bar drifts or binds near the top | Scoring, or out of plumb | Quarterly | Scoring that catches a fingernail |
| Counterweight cable and pulley | Bar feels heavier than it did | Fraying at the pulley wrap | Monthly visual | Any broken strand |
| Hook rows and catches | Bar needs a second attempt to rack | Rolled edges on the hook face | Monthly | Intermittent catch under load |
| Safety stops | Rarely noticed at all | Bent lip or worn detent | Quarterly | Any stop that does not seat fully |
| Bar sleeves and collars | Plates rattle on the sleeve | Sleeve wear from loose plate bores | Quarterly | Visible slop with a plate fitted |
| Frame anchors and fasteners | Slight rock under a heavy set | Loose anchors, untorqued bolts | Twice yearly | Any fastener below spec torque |
| Bench and pad, where fitted | Surface cracking at the seams | Foam compression under the seam | Quarterly | Any split reaching the foam |
The Safety Case Behind a Locking Mechanism
Locking hardware on strength equipment is not a theoretical risk. The Consumer Product Safety Commission announced on December 18, 2025 a recall of approximately 1,900 AMP MP2 smart fitness machines, stating that the arm did not lock properly and could swing unexpectedly, with ten reports of improper locking causing lacerations to the head and bruising. The remedy was a free in-home inspection and replacement of a component inside the shoulder cap of the locking mechanism.
The transferable lesson is about documentation rather than that specific product. When a locking component is implicated, the club needs serial numbers, install dates and a service history, and that record is what decides whether a warranty claim survives the paperwork.
The Standard That Covers Cardio and Skips the Rack
ASTM maintains category-specific standards for several cardio machines. Its announcement of the elliptical standards describes F2810 and F2811, a specification and a matching set of test methods for elliptical trainers, developed by Subcommittee F08.30 on Fitness Products, alongside the earlier F2571 test methods approved in 2009.
No equivalent pairing names this category. Commercial smith machines fall under general fitness equipment requirements rather than a dedicated specification, so a buyer comparing two stations has no common test method to point at and must write the performance criteria into the purchase order.
Specifying Commercial Smith Machines That Age Well
- Get the effective bar load in writing. Ask for the counterbalanced starting weight as a number on the quote. Trainers program from it and members compare against it, and it changes between models in the same catalog.
- Name the motion hardware. Bushing, sealed bearing or roller, stated explicitly. This single line predicts the year-four service profile better than the frame gauge everybody asks about.
- Confirm the install with a level. Check plumb on both guide rods after anchoring and again after the floor finish has cured. Alignment errors introduced here are paid for in bushings for the life of the station.
- Stock the wear kit at handover. Bushings, a counterweight cable and a set of catches, ordered with the machine. These parts are cheap at purchase and slow to source two years later.
- Put the station on a tactile inspection round. A quarterly walk that racks the bar at three heights and feels for play finds every fault in the table above before a member does.
Questions Buyers Ask Before Ordering a Smith Station
Are commercial smith machines still worth floor space
On most general fitness floors, yes. They serve members who train alone and will not load a free bar, and they absorb demand that would otherwise queue at racks. On a dedicated lifting floor the same footprint usually returns more as a second rack.
How often should the counterweight cable be replaced
On condition rather than on a calendar, but inspect it monthly. A cable that shows any broken strand at the pulley wrap is replaced immediately, not scheduled. Frequency of use and how hard the bar is returned to the top matter more than elapsed years.
Does an angled bar path need different maintenance
The components are the same but the loading is not. Angled designs put more asymmetric force through the bushings, so play appears earlier on one side. Inspect the lower travel more closely on angled stations and expect a shorter bushing interval.
Can a station be re-anchored on a different floor
Usually, if the frame has not been distorted and the new slab can take the load. The alignment check matters more than the move itself. Budget for new anchors, a fresh torque round and a plumb check rather than treating it as a lift-and-place job.
What the Bar Was Telling Everyone
The complaint that started this was accurate and early. A bar that hesitates at the hook is reporting bushing wear, rod alignment or catch damage, and all three are cheap to fix at that stage. Commercial smith machines failed here because the category produces no data and therefore attracts no attention. Put a hand on the bar every quarter and the service history writes itself.
